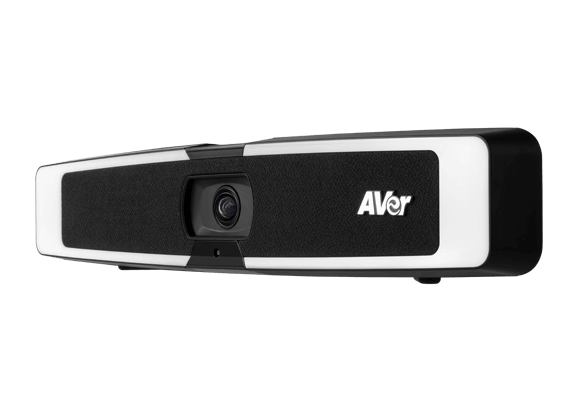

AVer VB130

Description

Simply brighter and better

4K Video bar with intelligent lighting for Huddle Rooms



Camera
 4K optics lens, 120° FOV, up to 4X zoom
 Sony 4K sensor: ultra-crystal-clear image in any lighting
 Frame rates: (16:9) 4K, 1920 x 1080, 1600 x 900, 1280 x 720, 960 x
540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280
x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
 Adjustable audio fence: freedom to define your meeting area
 Intelligent fill light: Automatically adjust lighting level to make
you look energetic in virtual meetings in a dim environment*
 SmartFrame: automatic FOV adjustment to fit all participants
 SmartSpeaker: Voice triggered tracking people or specific
preset areas.
 Mirror, flip, AE, white balance: auto/manual override via
PTZApp2
 Minimum focus distance: 60 cm
 People-counting API: enterprises and third-party software
providers can obtain people-counting data for better
understanding of meeting-space usage
 10 camera presets (through remote control and IP web page)
*The best lighting distance is for people sitting within 1meter far from the
camera

Audio
 Beamforming microphone array: 5 microphones, 4 m pickup
range
 Echo cancellation
 Noise suppression
 Supports expansion microphone

Connectivity
 12V/2A power adapter
 Mini-B for expansion microphone connection
 USB Type-B 3.1 connector, backward compatible with USB 2.0
 RJ45 port for Ethernet
 USB 2.0 Type-A for wireless connection*
*Optional wireless dongle is required to connect with mobile phone

Video Format
 YUV, YUY2, MJPEG
 Network video compression format: H.264
 Network protocols: RTSP, RTMP*
*When USB streaming is in use, RTSP and RTMP are not available.

USB
 3.1 Gen 1, backward compatible with USB 2.0
 UVC 1.1 (USB video), UAC 1.0 (USB audio)

Control
 IR remote control
 WebUI: IP access via Chrome browser (Chrome 76.x or later;
Internet Explorer not supported)
 UVC/UVA plug-and-play
 PTZApp 2

Mount
 Screen mount kit (included)
 Camera wall-mount bracket (optional)

System Requirement
 Windows® 7/10
 MacOS X 10.7 or later
 Google Chromebook™ version 29.0.1547.70

Hardware Specs
 3.2 GHz Intel® Core™ i5-4460 processor
 4 GB RAM or more
 USB 3.1 port, backward compatible with USB 2.0

Power Supply
 AC 100V–240V, 50/60 Hz
 Consumption: 12V/2A

Free Applications for Meeting Collaboration
(Free Apps support on Windows® and Mac® computers)

EZManager 2: Camera Central Management Software
 Remotely group FW/SW upgrades, control the camera, and
manage settings

PTZApp 2: Camera Setting Software
 View live video, people counting number, meeting interval
information
 Enable Skype for Business far-end control
 Upgrade firmware automatically or manually
 Control the camera
 Set parameters and adjust the camera image
 Diagnose operating status

EZLive: Broadcasting Software
 Enjoy multi-camera real-time streaming, annotating, image
capturing, and video recording

Environmental Data
 Operation temperature: 0 ~ 40°C
 Operation humidity: 20% ~ 80%
 Storage temperature: -20 ~ 60°C
 Storage humidity: 20% ~ 80%

Dimensions
 Package dimensions: 406(L)x146(W)x189(H) mm
 Package weight: 2.358 kg
 Camera: 350(L) x 65(H) x 75(D) mm/0.922 kg
 Remote control: 149.72 x 42.3 x 19.29 mm/50g

Package Contents
 VB130 unit
 Power cable 10 ft (3 m)
 USB 2.0 Type-B to Type-A Cable 15 ft (5 m)
 QR code card
 Screen mount and screws
 Remote control
 Tripod screw
